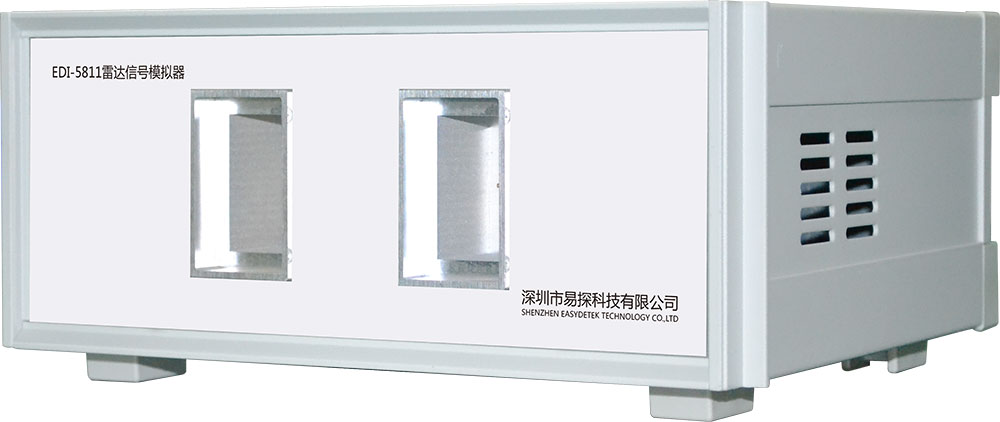

EDI5811

Home Product Center Instrument

EDI5811

Signal Simulator

Data Download

Functions:
1.Test operating frequency and transmitting power.
2.Pulse Doppler Simulation
3.Aging Test

Product Introduction

The radar signal simulator is divided into two parts: the host computer and the upper computer software. The simulator can receive the signals emitted by the radar module, process and display the frequency and power of the signals. Customers can set various different test conditions.

Specification

Frequency Band

5.8GHz±75MHz
Quota Input

5Vdc
Test Frequency

5400-6000Mhz
Test Power

200-500（Relative Value）
Doppler Frequency

1-99Hz
Operating Temperature/Humidity

-20-45℃，0-90%RH
Storage Temperature/Humidity

-20-60℃，0-90%RH
Size

235*203*100mm

Application Scenarios
