EDI5801

Home Product Center Instrument

EDI5801

Power Frequency Tester

Functions:
1.Detect radar power and consistency.
2.Identify the ISM band of 5.8G.

Product Introduction

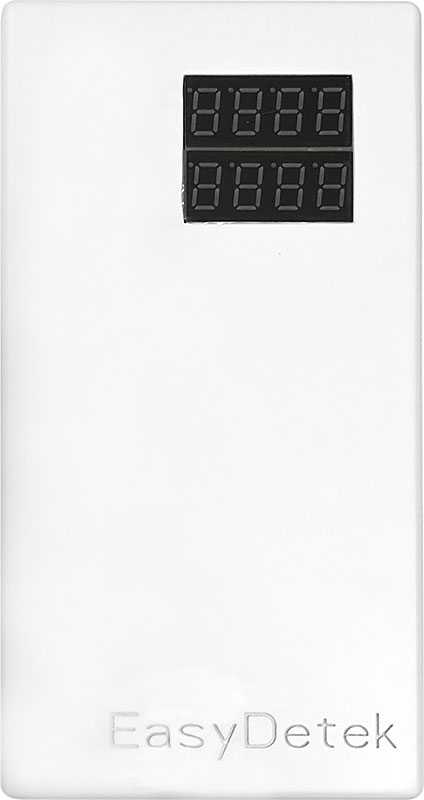

The power frequency tester includes a host and a display. The host computer is connected to the detector and frequency divider. Then the power value and frequency are derived through MCU processing and finally displayed through LED screen.

Specification

Frequency Band

5.8GHz±75MHz
Quota Input

5Vdc
Test Frequency

300-440（Relative Value）
Operating Temperature/Humidity

0-40℃，0-80%RH
Operating Temperature/Humidity

0-50℃，0-70%RH
Size

155*77*18mm
