New Product Release: EDQ25D — 24GHz Human Presence Sensor with Dual-Zone Partitioning

EasyDetek is proud to introduce the EDQ25D, our latest 24GHz human presence sensor designed for high-end professional lighting control. Featuring the DALI-2 communication protocol, the EDQ25D offers exceptional anti-interference capabilities and supports independent Left/Right zone detection.

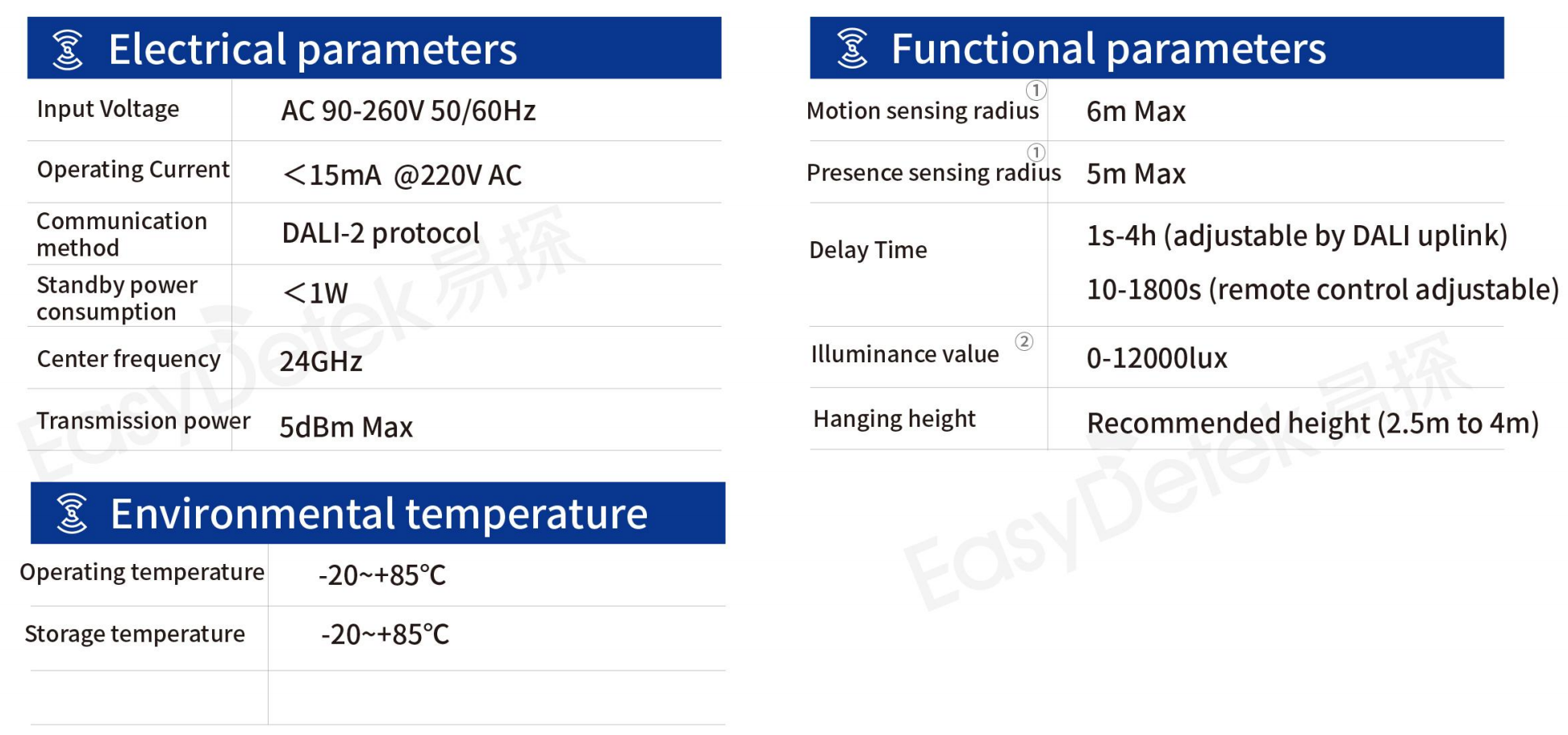

01: Specifications

02: Key Features

DALI-2 Communication Protocol The EDQ25D utilizes the DALI-2 (Digital Addressable Lighting Interface) protocol, a global standard for professional lighting control. Compared to wireless technologies like Wi-Fi or Bluetooth (BLE), DALI-2 provides superior signal stability, reliable transmission over longer distances, and robust anti-interference performance in complex commercial environments.

Advanced Sensing with Zone Partitioning Equipped with our signature 24GHz radar technology, the EDQ25D supports movement detection, micro-motion sensing, and static presence detection.

Zone Detection: Features unique Left & Right partitioning, allowing for granular control of different lighting groups within a single space.

Flexible Tuning: Parameters such as detection range, sensitivity, and delay time can be easily adjusted via a dedicated remote control or a DALI Master PC interface.

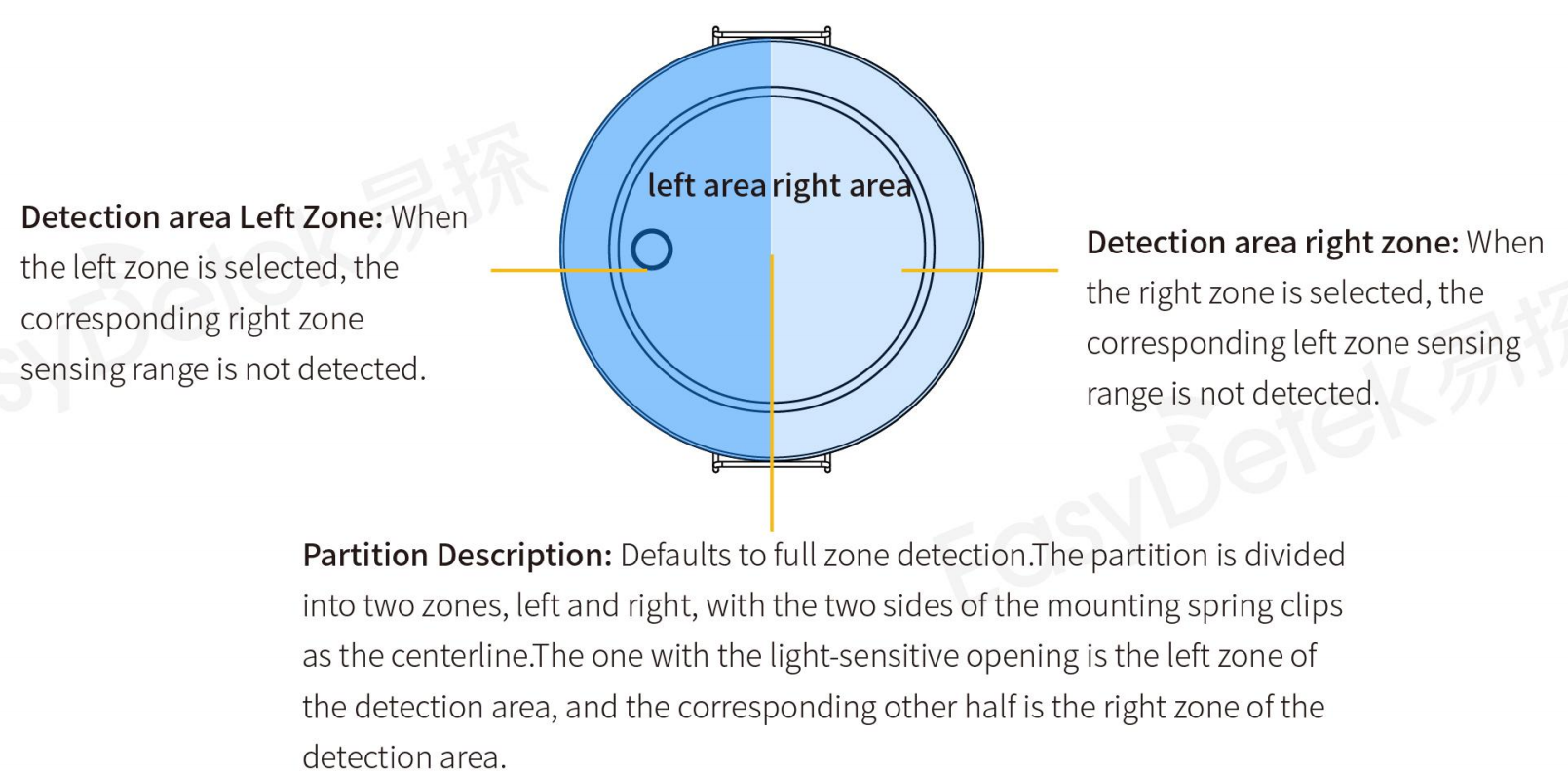

03: Partitioning Logic
