EDC114B

Shielded and certified.

motion detection
cost-effective
Overseas certified
adjustable serial port

Product Introduction

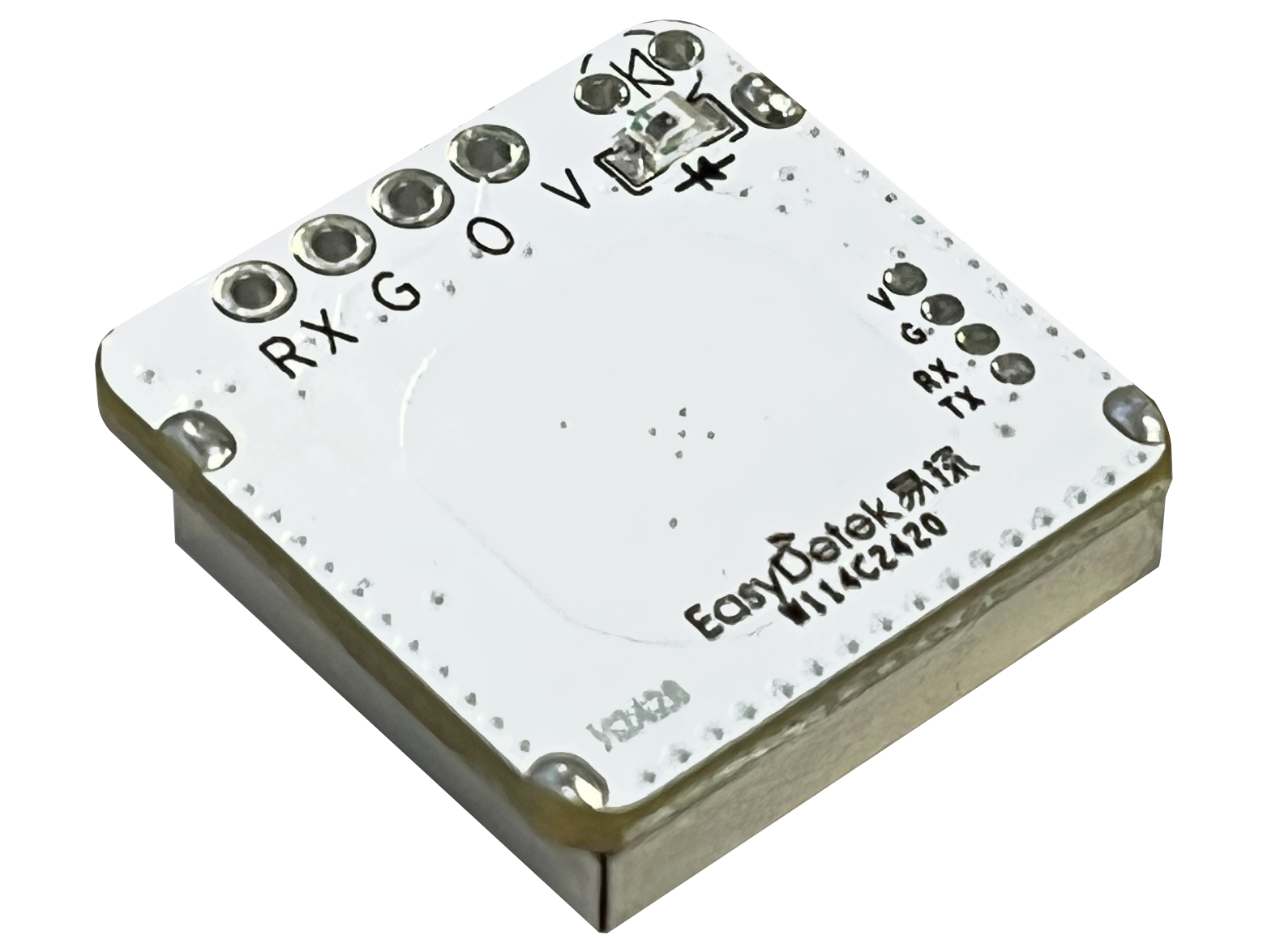

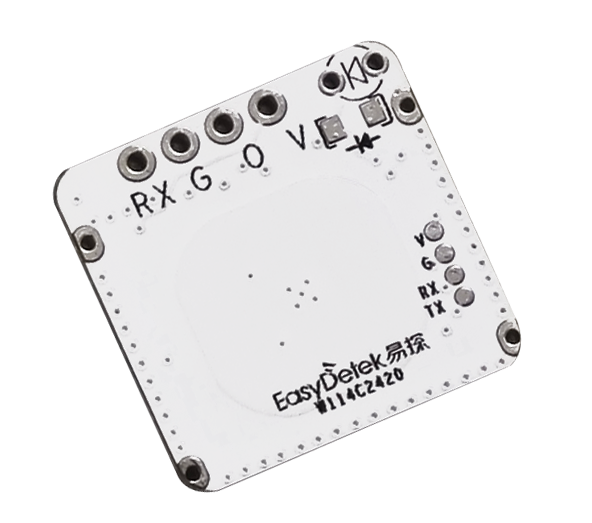

The EDC114B radar module is a radar module with a shielded case for backward non-sensing, demanding scenarios.

Specification

Frequency band

5.8GHz±75MHz
Input voltage

7-12V
Output voltage

5V
Operating current

18±2mA
Sensing distance

4-6m @ 3m hanging height
Delay time

30s
Product size

20*20mm

Application Scenarios

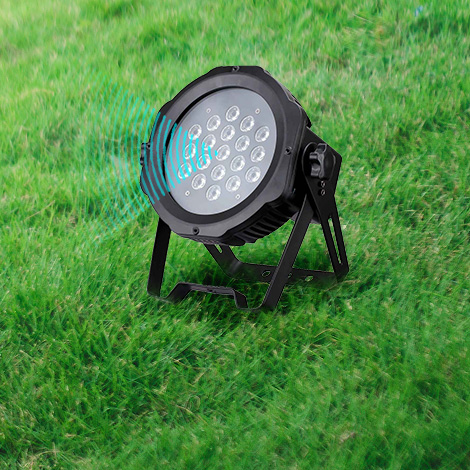

Spotlight

Ceiling Light
