EDC802

Home Product Center Networking Series

EDC802

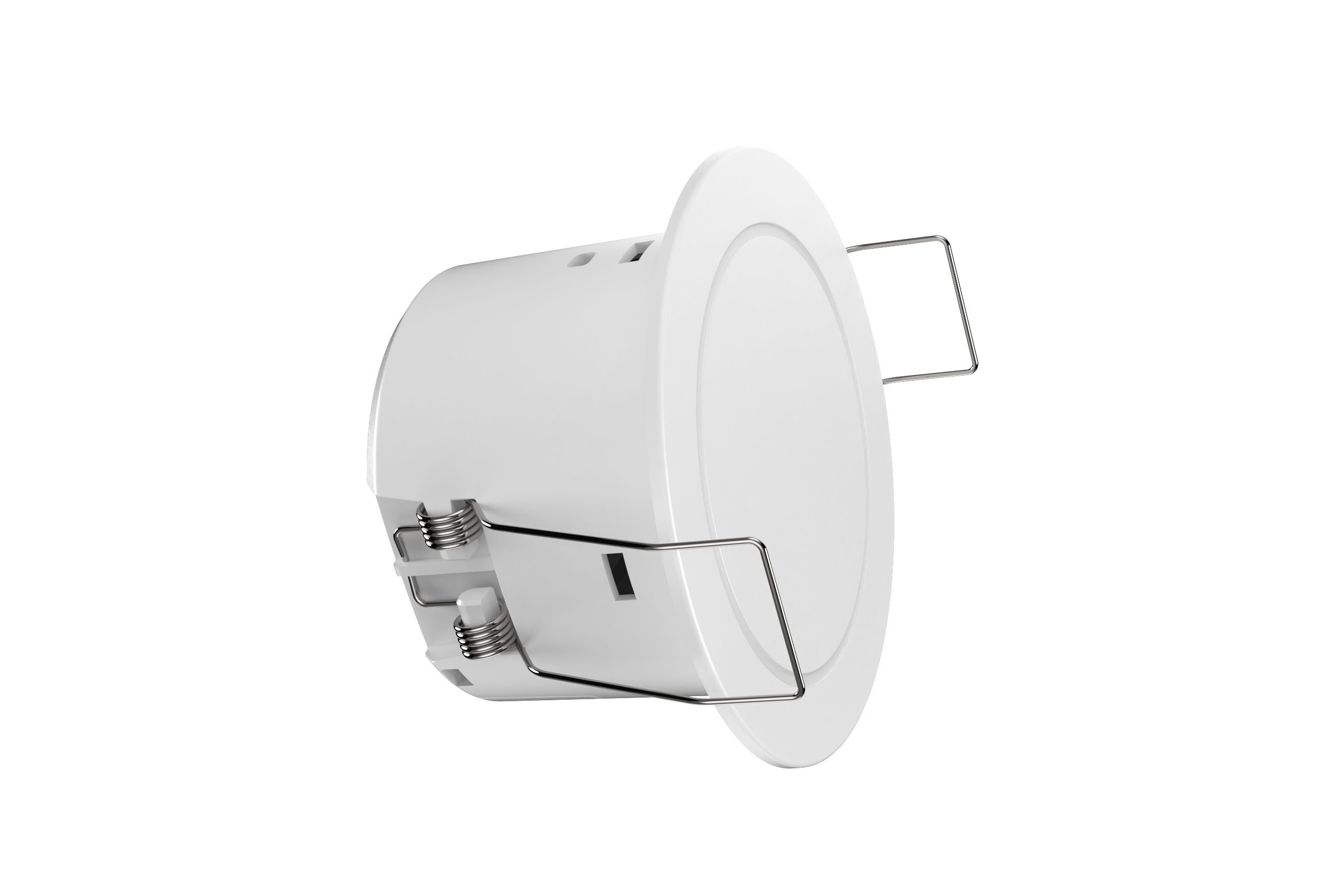

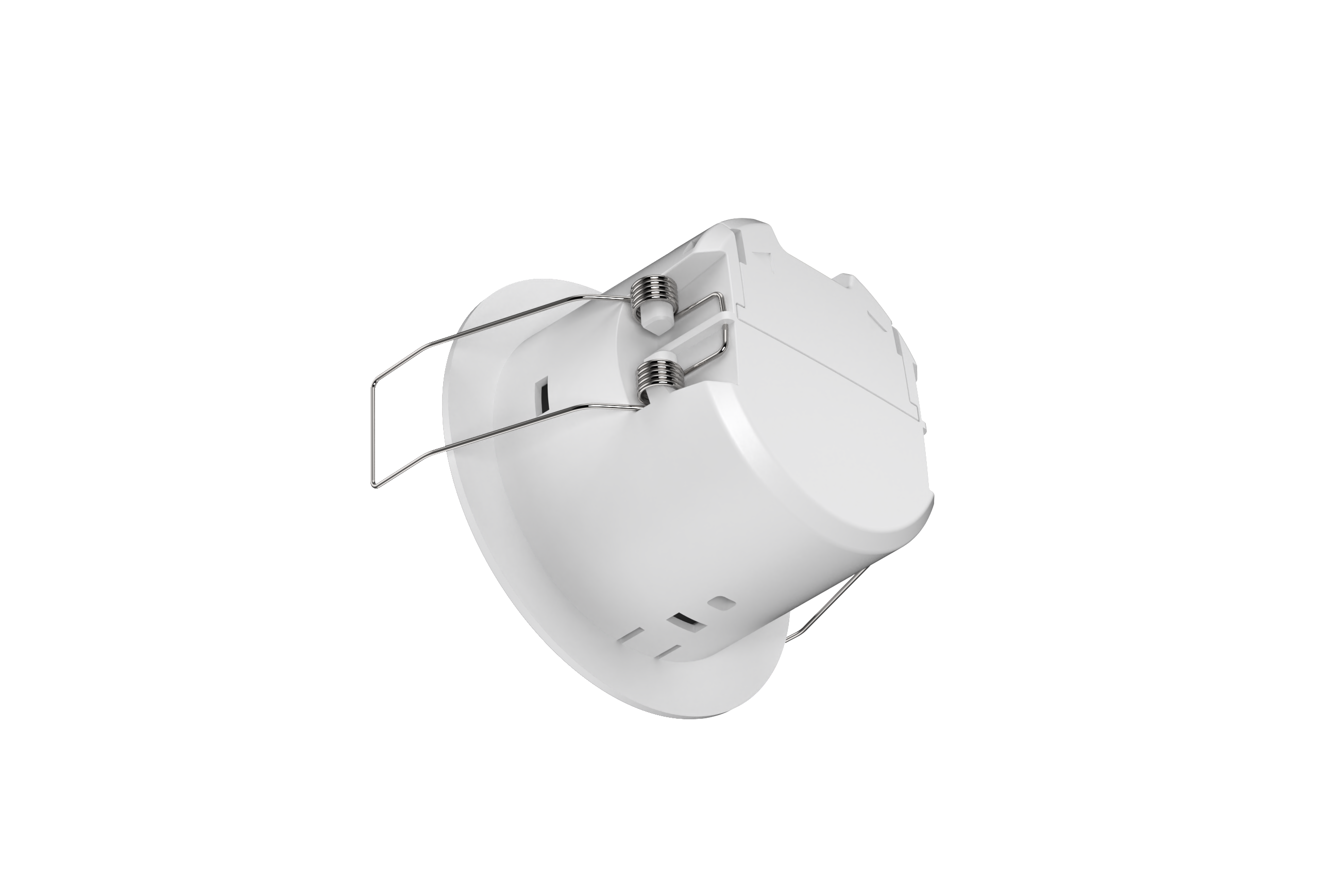

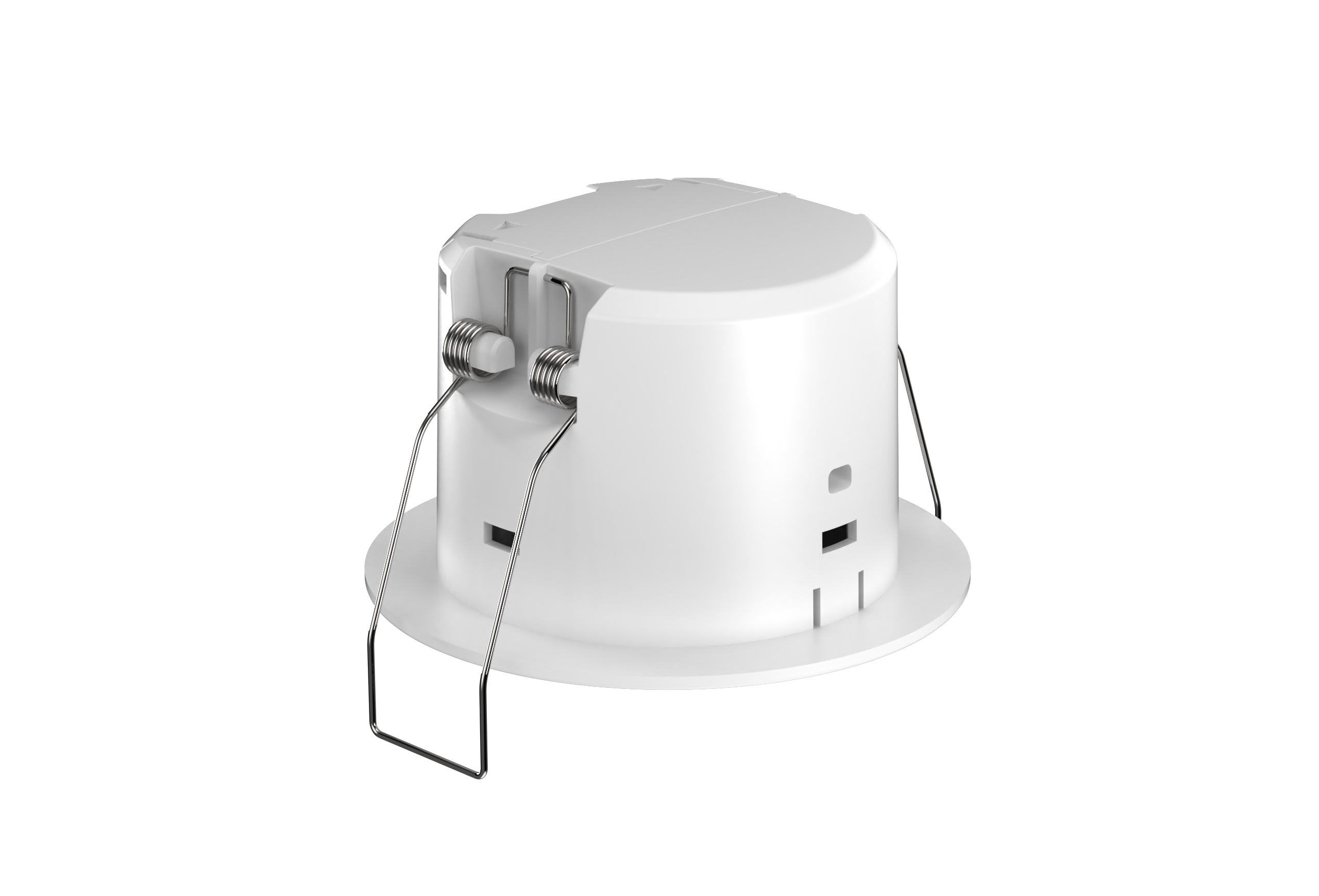

Module integrates adjustable sensitivity 5.8G radar sensor

high anti-interference
highly adaptable to the scene

Product Introduction

Module integrated adjustable sensitivity 5.8G radar sensor, radar antenna and 2.4G RF antenna integrated in a module, small size, flexible installation; power on that is the network, you can manually free partition grouping set up a virtual circuit can also be machine learning between the lamps and lanterns automatically composed of the same light with the same extinguishing circuit; adjacent group notification, notify the front of the group of fixtures in the area in advance of the light up, the light is comfortable.Lighting speed, extinguishing speed time adjustable

Specification

Supply voltage

DC 5-8V
Operating current

30±3mA
Communication protocols

GS-LINKER
Operating frequency

5.8GHz±75MHz
Hanging height

2.5m
Sensing radius distance

4-5m
Communication distance

Open field single jump＞40m, support multiple jumps
Product size

39 * 20mm

Application Scenarios

Smart Appliance

Smart Business

Smart Lighting
