EDC286

Home Product Center Radar Switch

EDC286

5.8GHz Dry Contact Sensor

Product Introduction

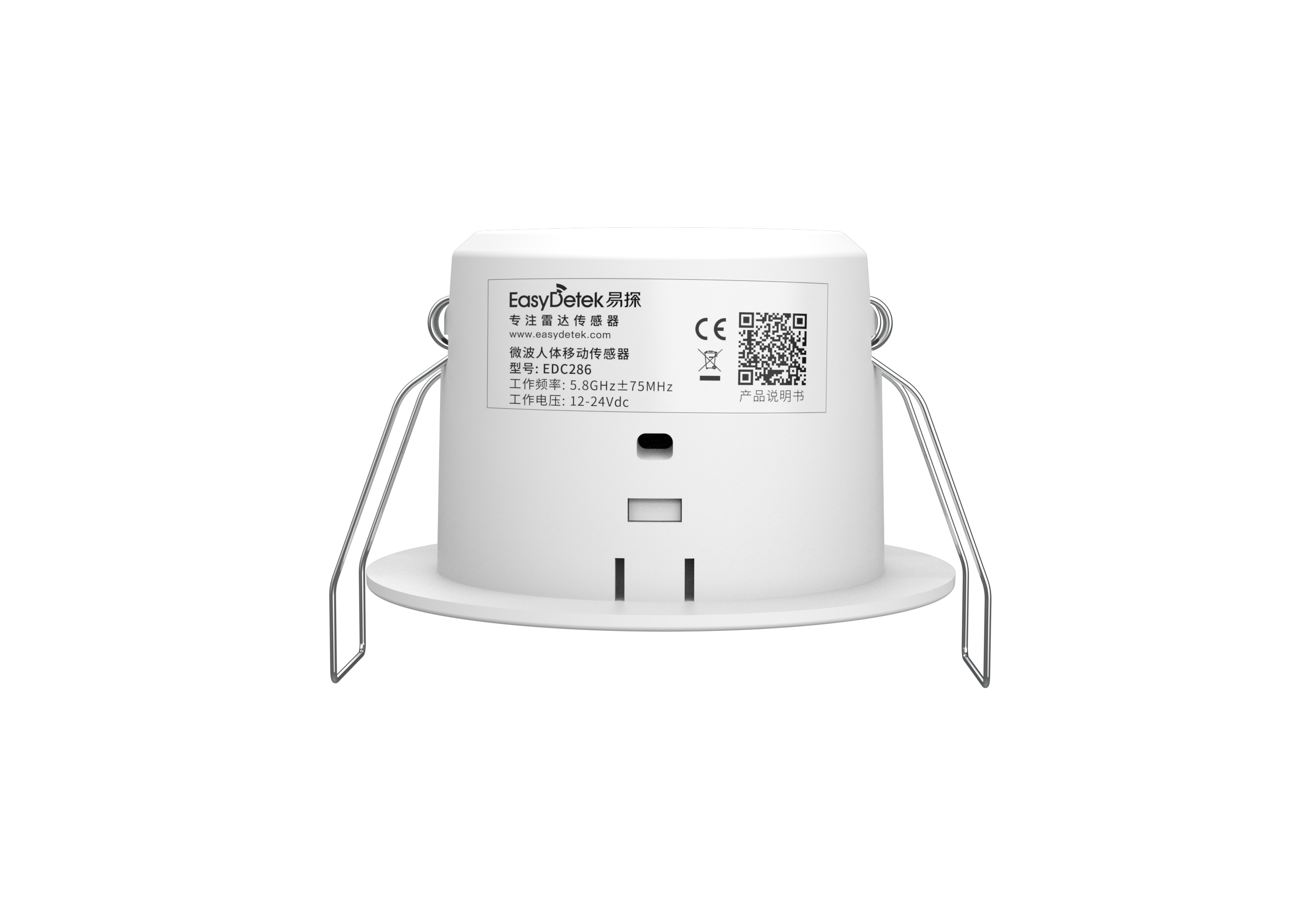

The EDC286 is a 5.8GHz mobile dry contact sensor that supports in-line standalone installation as well as open mounting with a kit.

Specification

Frequency band

5.8GHz±75MHz
Input method

12-24Vdc
Power wastage

＜0.5W@24Vdc
Operating current

75mA@12V DC 40mA @24V DC
Sensing distance

4.5m(tunable)
Delay time

5s-30min (adjustable)
Dry contact loads

36V / 50mA MAX
Product size

Opening diameter φ55mm

Application Scenarios

Office

Hotel

Smart Business

Smart Lighting
